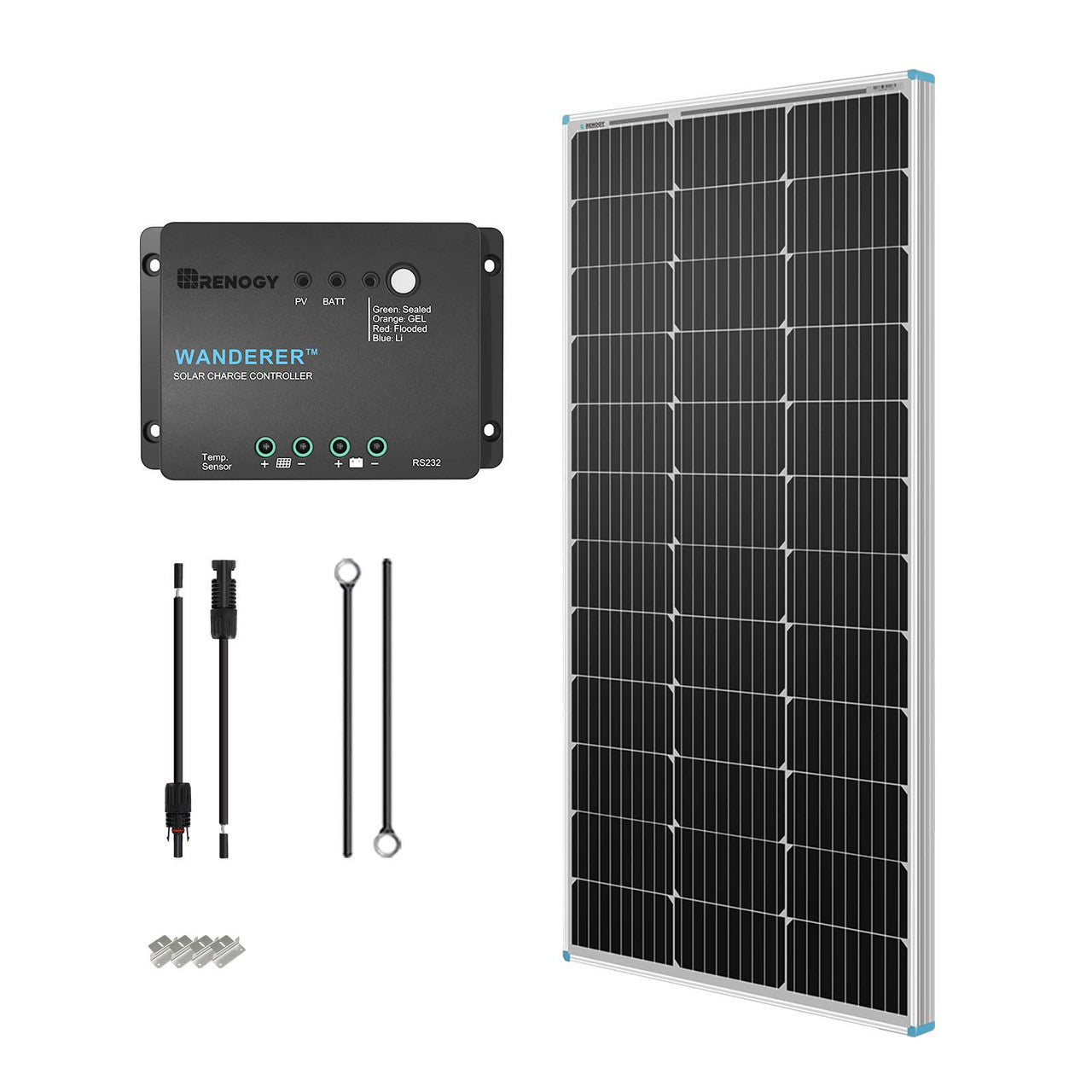

Renogy 100W 12V Monocrystalline Solar Starter Kit w/Wanderer 30A Charge Controller

In stock
SKU: RNG-KIT-STARTER100D-WND30-US
$149.99
Sale $225.99 $149.99

Payment Methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • 500Wh average daily output. 22.5% cell efficiency. 100% EL-tested solar panel.
  • 10-year material and workmanship warranty on solar panel. 2-year on charge controller.
  • UL61730-listed panel. 2400Pa wind, 5400Pa

100W MONOCRYSTALLINE SOLAR PANEL

  • Maximum Power at STC: 100W
  • Optimum Operating Voltage (Vmp): 20.4V
  • Open-Circuit Voltage (Voc): 24.3V
  • Optimum Operating Current (Imp): 4.91A
  • Short-Circuit Current (Isc): 5.21A
  • Operating Temperature: -40°F to 176°F
  • Maximum Series Fuse Rating: 15A
  • Maximum System Voltage: 600V DC (UL)

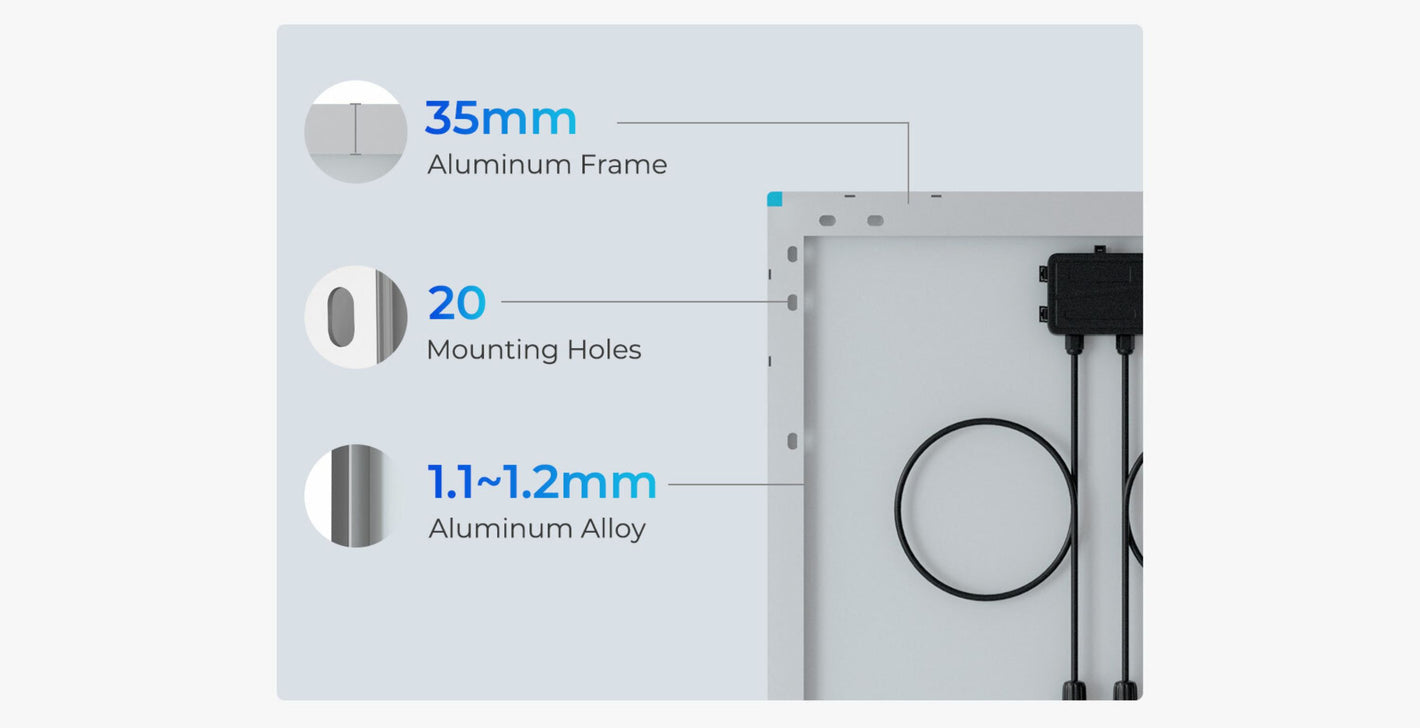

  • Dimensions: 41.8x20.9x1.4in/1062 x 530 x 35 mm
  • Weight: 14.1lbs/6.4kg

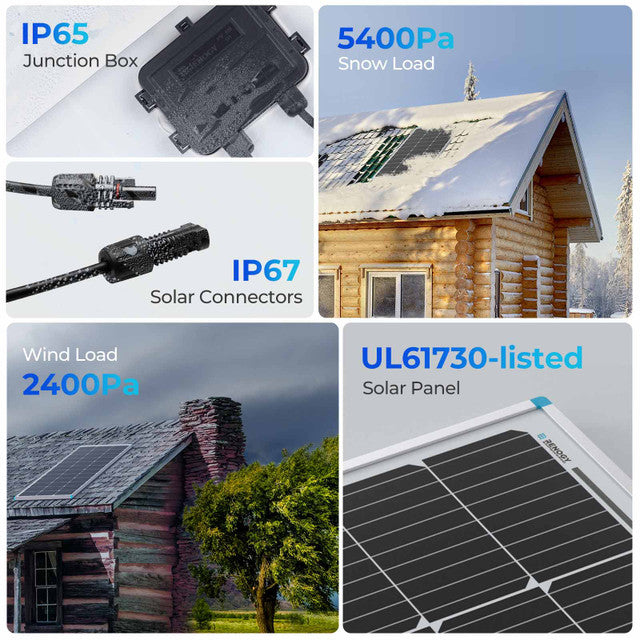

  • Junction Box: IP65
  • Solar Connectors: IP67

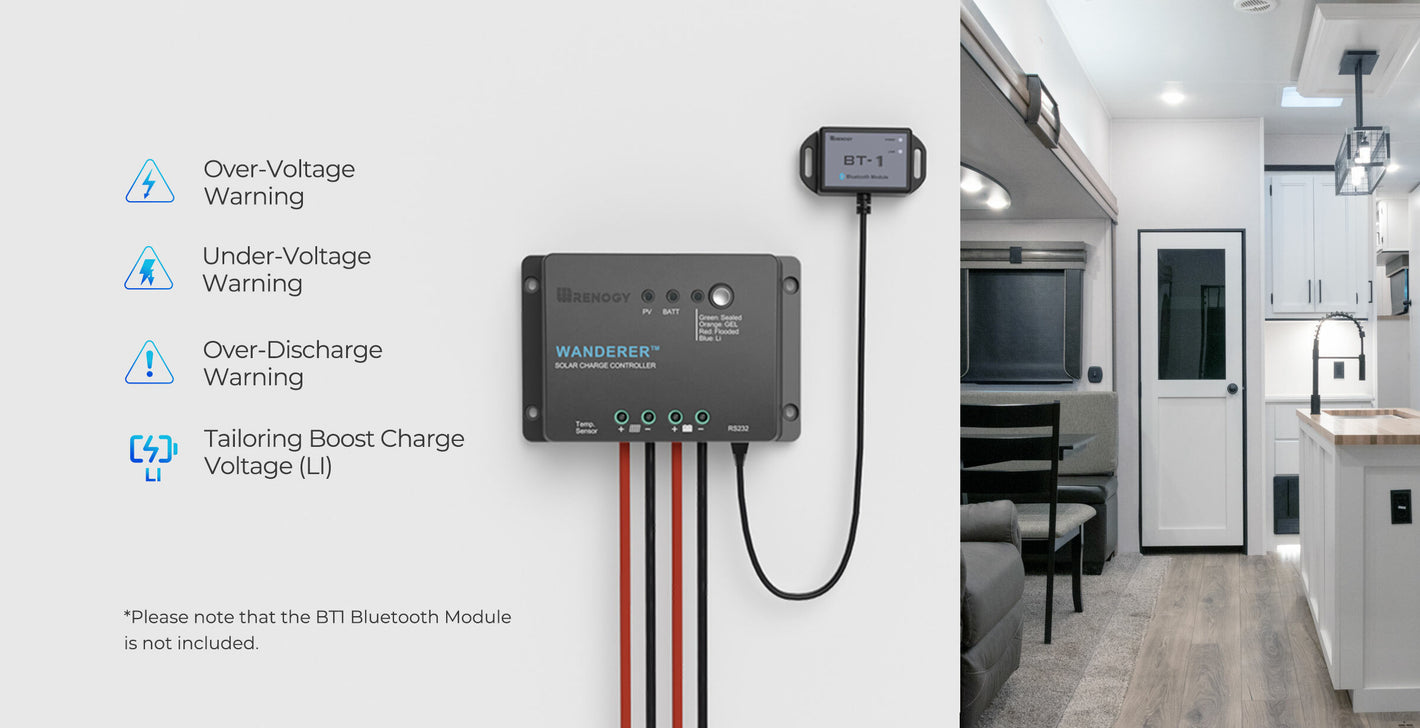

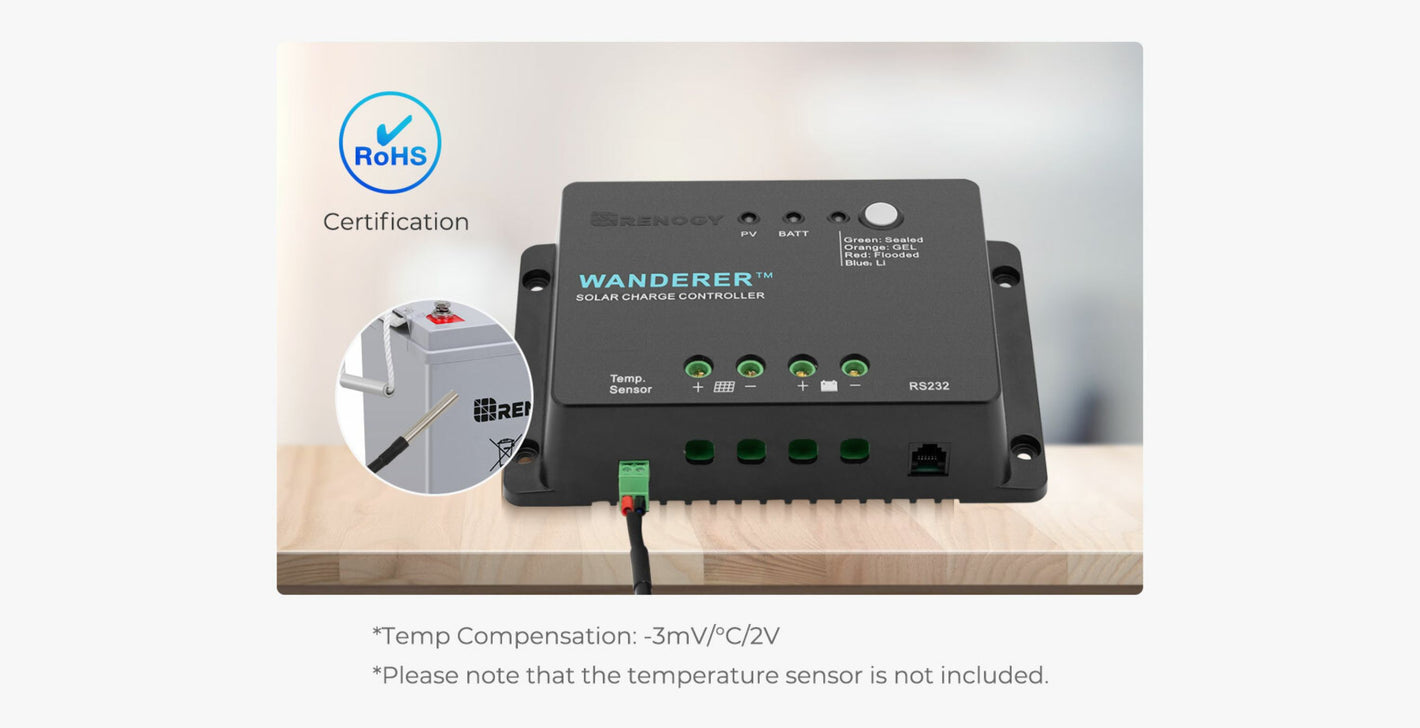

WANDERER LI 30A PWM CHARGE CONTROLLER

  • Nominal Voltage: 12 VDC

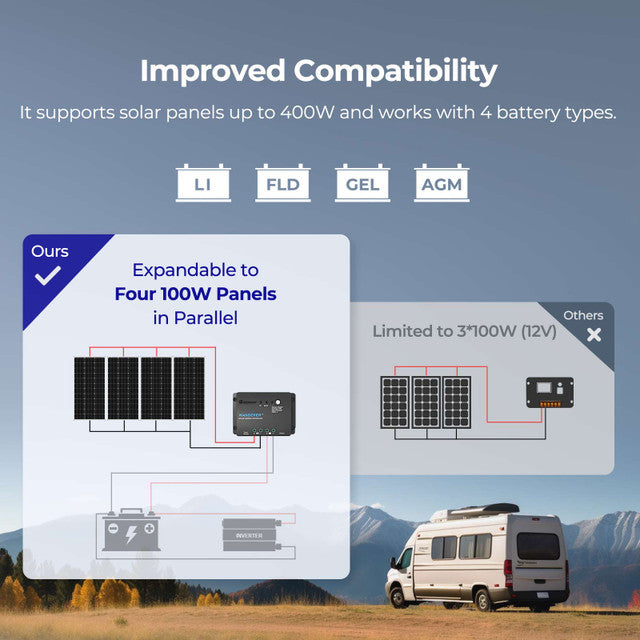

  • Max. PV Input Power: 400W
  • Max. PV Input Voltage: 25 VDC
  • High Voltage Disconnect: 16V
  • Working Temperature: -20°F - 113°F

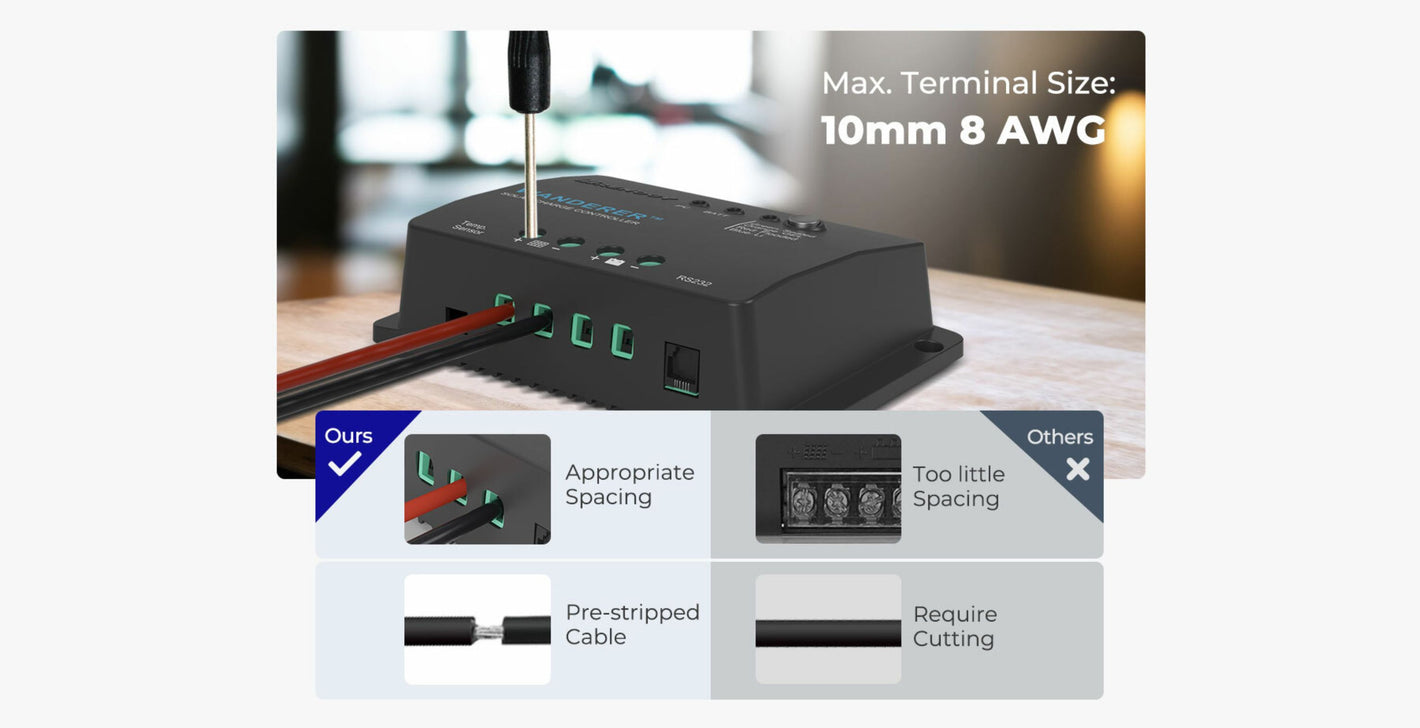

  • Max Gauge Size: Up to 8AWG
  • Dimensions: 6.45 x 4.31 x 1.76 in/168 x 109 x 44 mm
  • Weight: 0.65 lbs/0.29kg

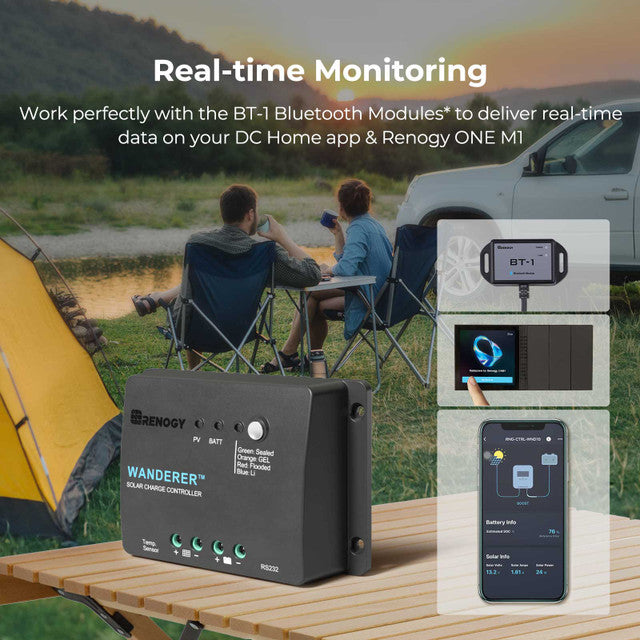

  • Compatible bluetooth: Renogy BT-1 Bluetooth module

8FT 10AWG TRAY CABLES (A PAIR)

  • Length: 8FT
  • AWG: 10
  • Rating Voltage: 600/1000V
  • Temperature: -40°F to +185°F

20FT 10AWG SOLAR ADAPTOR KIT (SET)

  • Length: 20FT
  • AWG: 10
  • Rating Voltage: 600/1000V
  • Temperature: -40°F to +185°F

WARRANTY

  • Solar Panel: 5 year 95% output warranty; 10 year 90% output warranty; 25 year 80% output warranty. 10-year material and workmanship warranty
  • Charge Controller: 2-year material and workmanship warranty
  • Accessories: 1-year material and workmanship warranty

Certifications

  • Solar Panel: ETL Listed; CE; ROHS; FCC Part 15 Class B
