Renogy 700W 12V Pure Sine Wave Inverter

Renogy 700W 12VDC-120VAC Pure Sine Wave Inverter

Inverter Output Specifications

Continuous Output Power: 700W

Peak Power Rating: 1400W

Output Voltage: 120V

Output Frequency: 60 Hz ± 0.1%

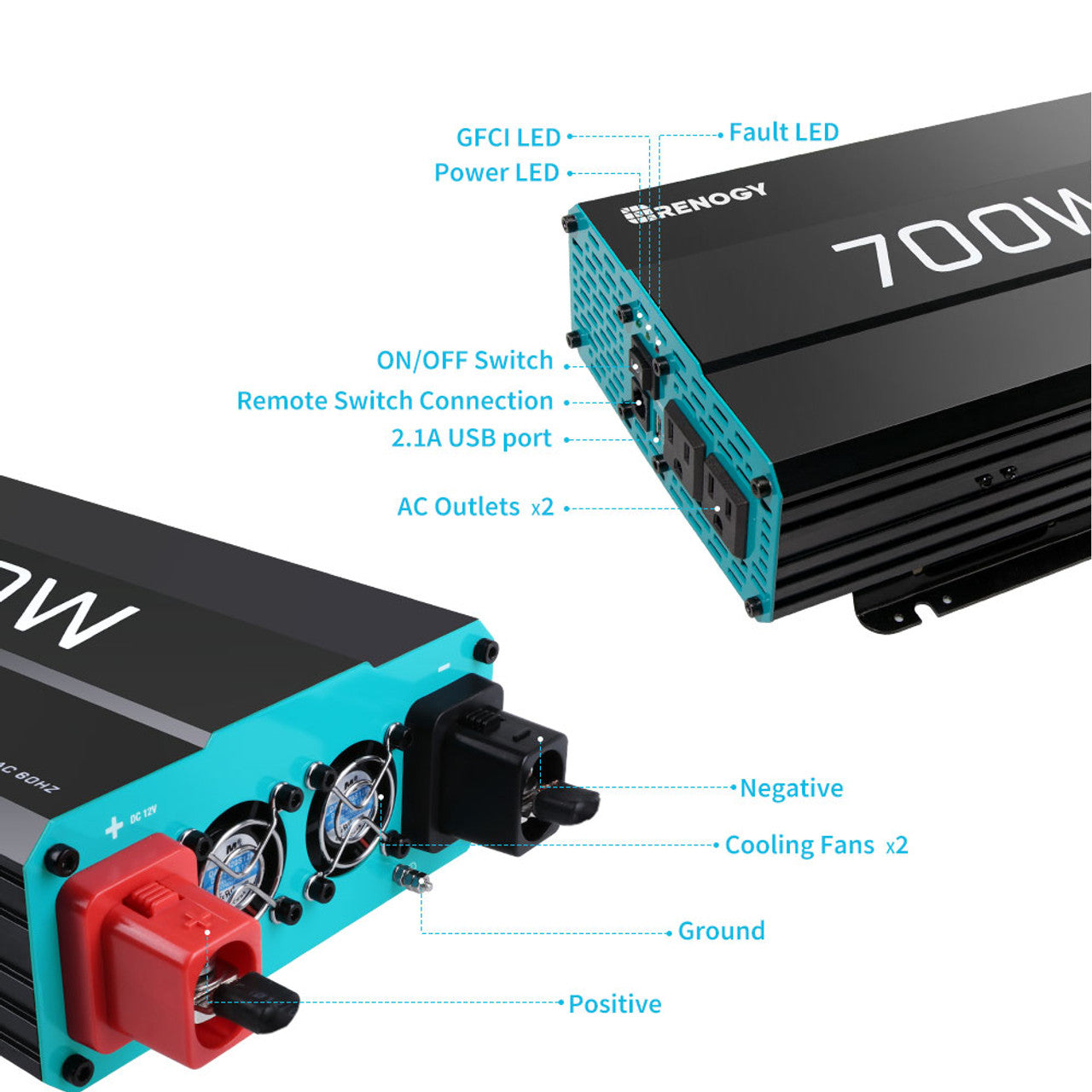

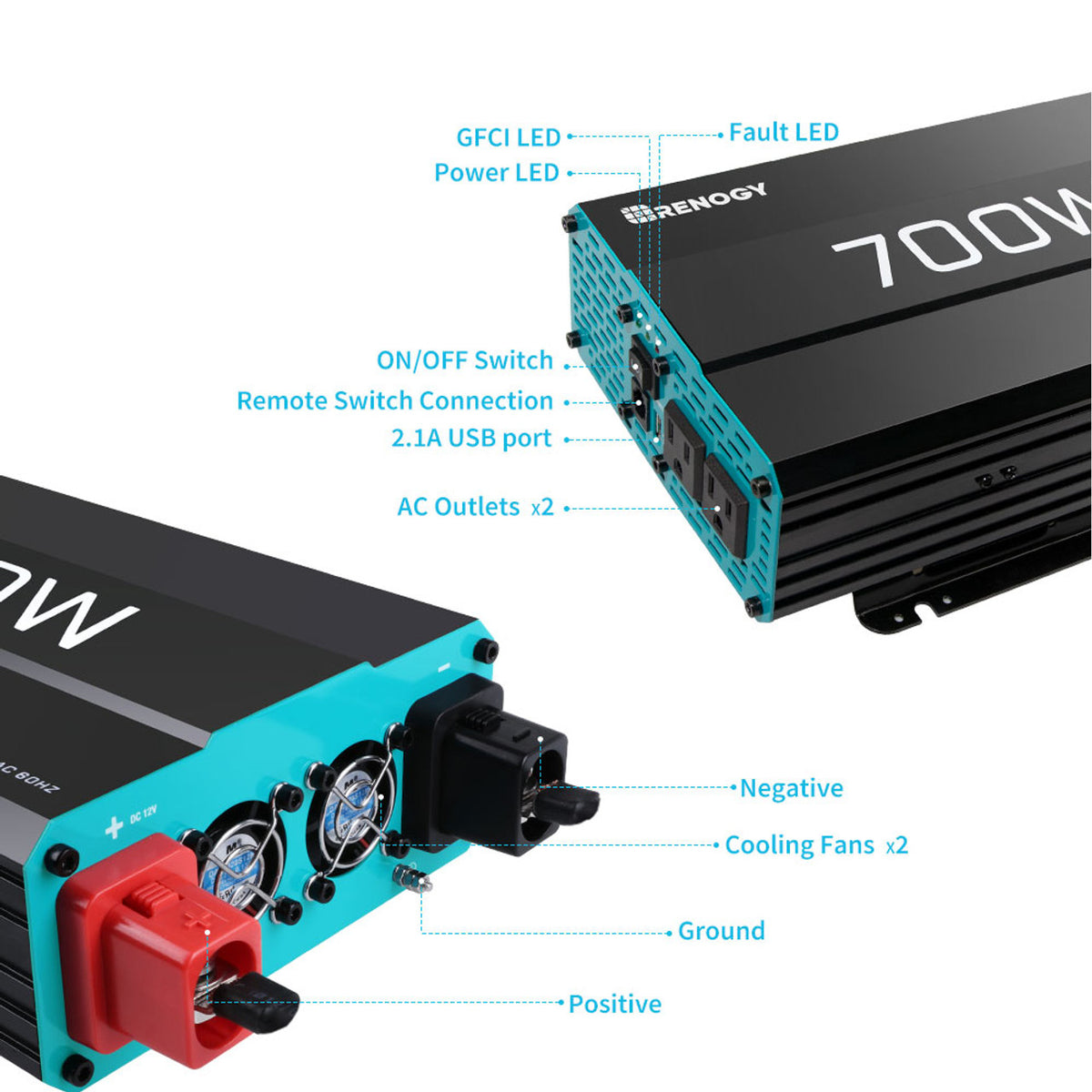

AC Output Sockets: 2

USB Power Port: 5V/2.1A

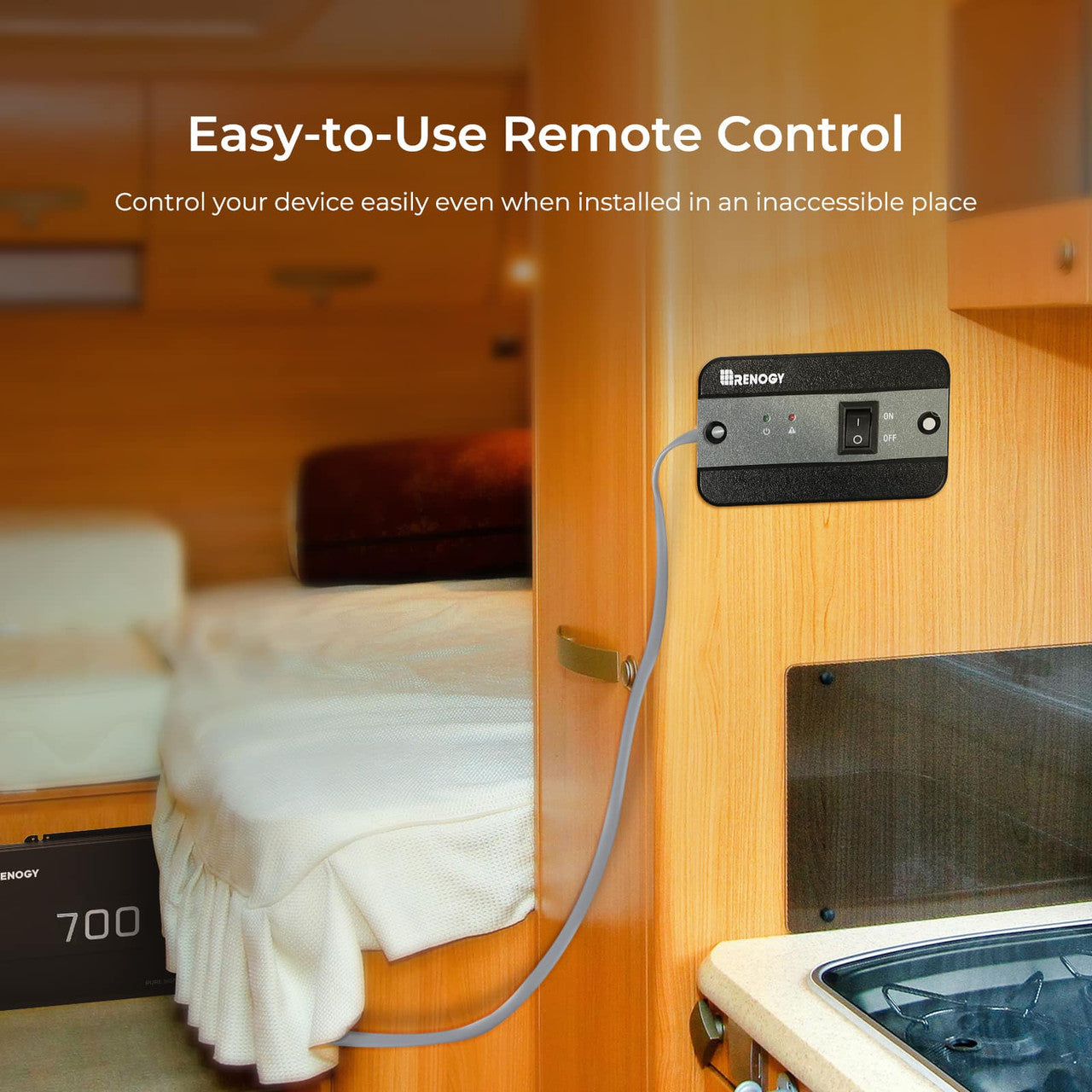

Power Output Control: AC On/Off Switch, and Remote Control

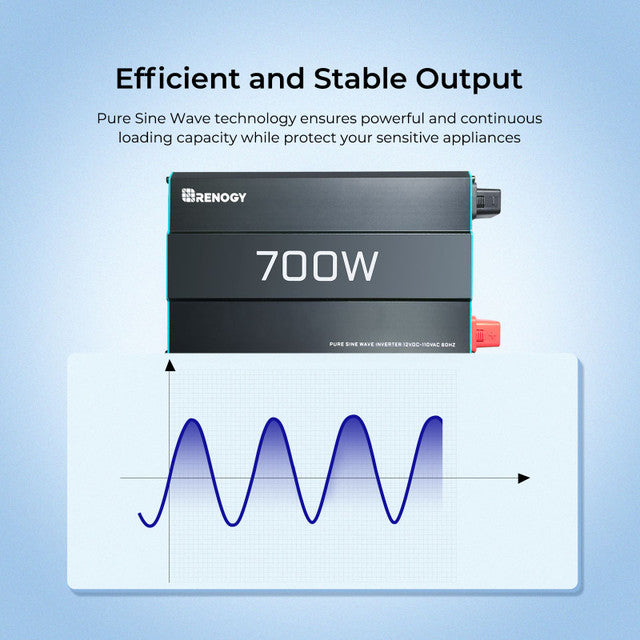

Output Waveform: Pure Sine Wave

Nominal Efficiency: > 90%

Total Harmonic Distortion (THD): < 3% Linear Load < 5% Non-linear Load

Mechanical Specifications

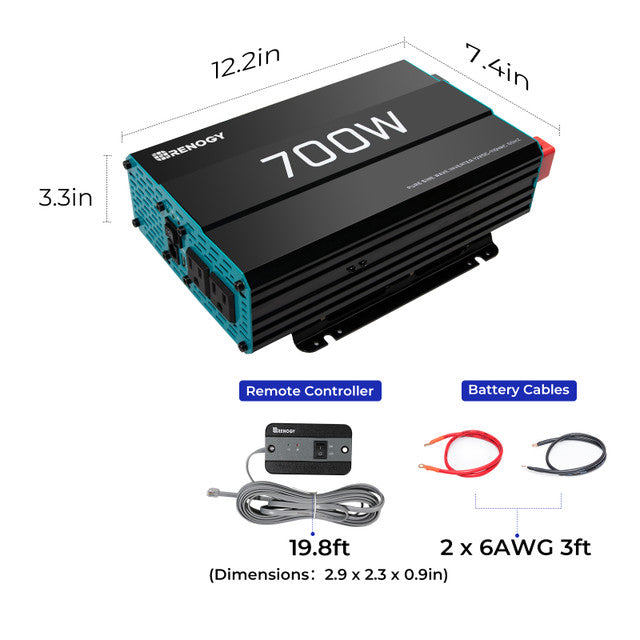

Dimensions: 12.2 x 7.4 x 3.3 in

Weight: 5.6 lb

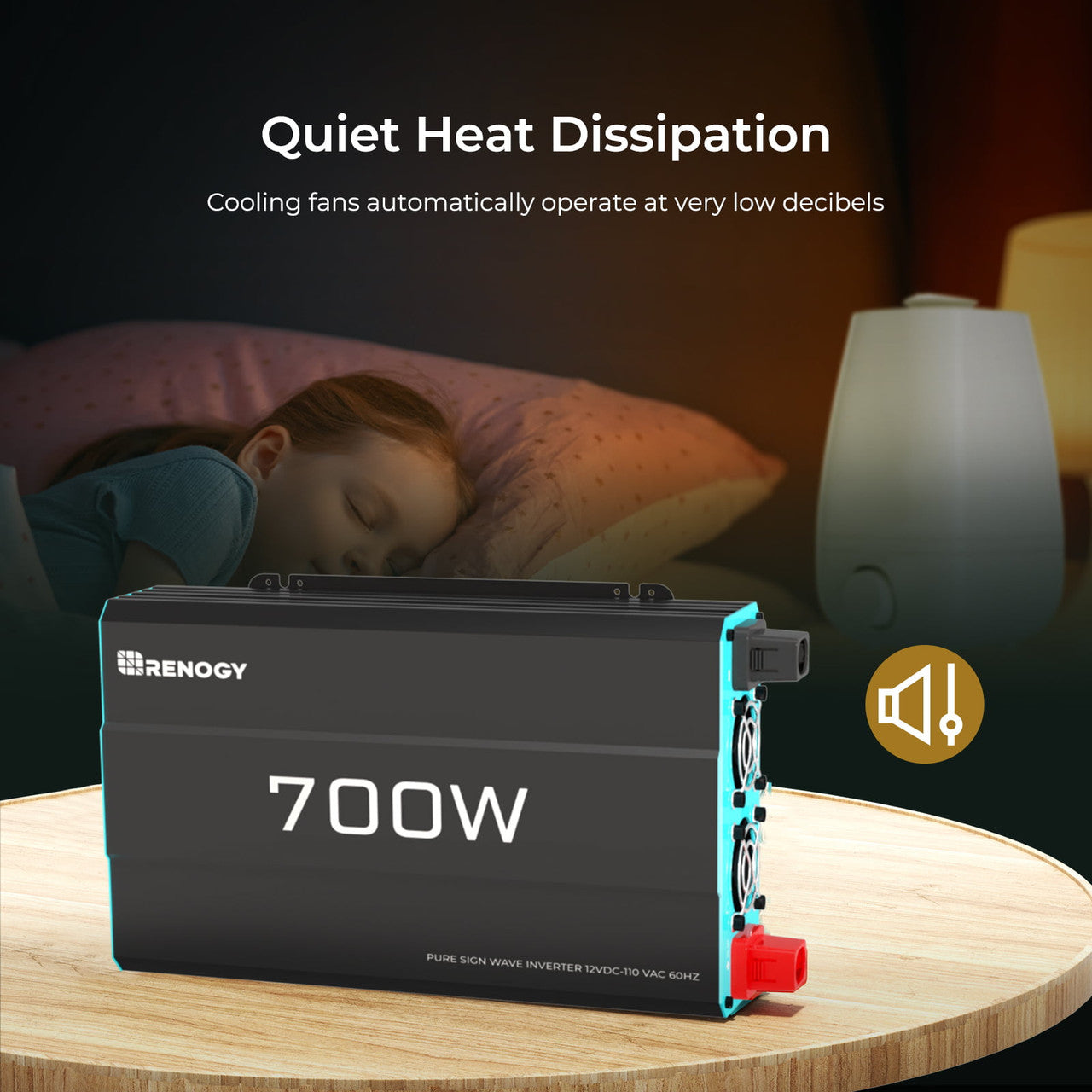

Cooling Fan: Thermally controlled

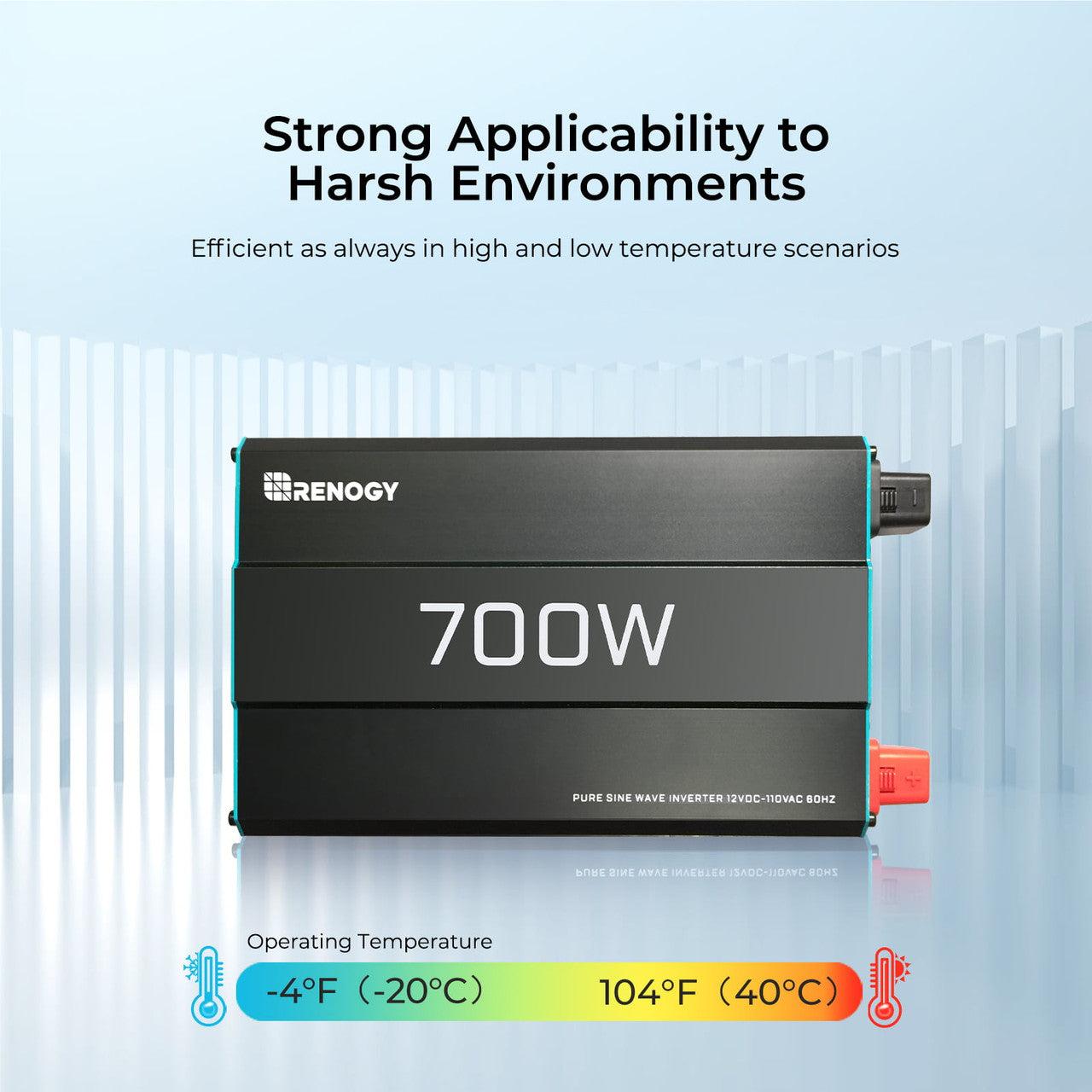

Operating Temperature Range: -4°F - 104°F

Input Specifications

Nominal Input Battery Voltage: 12V

Battery Terminal Size: M8

Low Battery Alarm: 10.5V ± 0.5V DC

High Voltage Alarm: 16V

Battery Low Shutdown: 10.0V ± 0.5V DC

Over Voltage Shutdown: 16.5V ± 0.5V DC

No Load Current Draw: < 0.8A

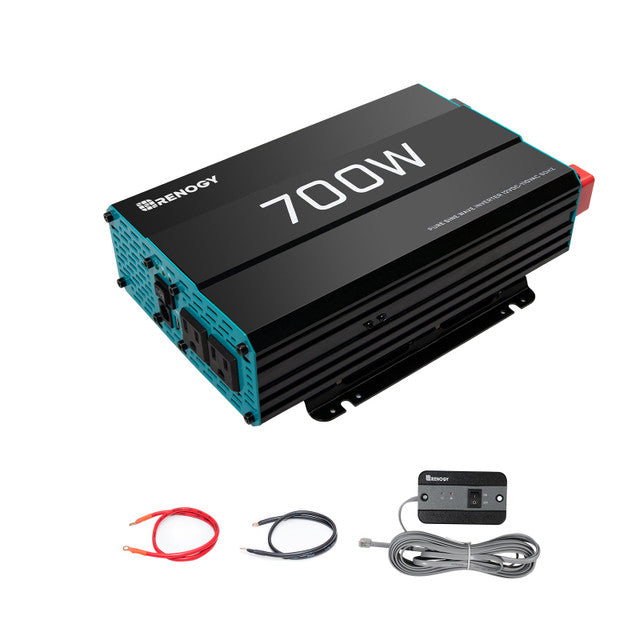

Accessories

Cable: 6AWG 3ft

Inverter Remote Control: 19.8 Ft

Certifications

ETL Listed to UL 458 and CSA 22.2 NO 107.1-01: YES

FCC Part 15 class B: YES

Warranty

Material and workmanship warranty: 1 Year

1. Can I use the inverter with a 24V system?

No. This model can only work with 12V battery system.

2. Can I use this inverter to charge my batteries?

No. The Renogy 12VDC to 120VAC inverter can only convert DC power to AC power. Please check the Renogy Pure Sine Wave Inverter Charger, and we have 12V 2000W and 12V 3000W for your options.

3. What size inverter should I buy?

1. Sizing the right power output.Inverters will be rated by a wattage value, telling you how many watts it can run at one time. For example, imagine you had a 500 Watt Fridge and 800 Watt Air Conditioning. These two items would be 1300 Watts and would require an inverter with a higher wattage than 1300W. Renogy 2000W and 3000W inverter will meet your power needs.

2. Check your battery voltage.The DC voltage rating on the inverter will tell you what battery bank it is compatible with. For example, a 12V battery bank will require an inverter that is compatible with 12V DC input.

3. Size your installation spaces.What area or space will you set your inverter? Make sure the inverter will fit in the space you have in mind with enough room around it for proper ventilation and no fire hazards.

4. Remote operation is important.Renogy pure sine inverters come with convenient remote control and DC HOME APP options so that you can operate the unit from afar.

4 .Do I need Modified Sine Wave, or Pure Sine Wave?

Modified sine wave inverters are older technology and generally less expensive. They can be used for many standard appliances but may cause trouble with delicate electronics or audio equipment. Some equipment may work but run hotter than normal.Pure sine wave inverters are a bigger investment, but much more versatile.

a) Output voltage wave form is pure sine wave with very low harmonic distortion and clean power like utility-supplied electricity.

b) Inductive loads like microwave ovens and motors run faster, quieter and cooler.

c) Reduces audible and electrical noise in fans, fluorescent lights, audio amplifiers, TV, Game consoles, Fax, and answering machines.

d) Prevents crashes in computers, weird print out, and glitches and noise in monitors.

5. How do I hook up the Inverter? What size cable should I use, and is it included?

When connecting the inverter to the battery always use the thickest wire available, in the shortest length practical. One 6AWG 3ft cable with battery terminals is included in the pacakge.

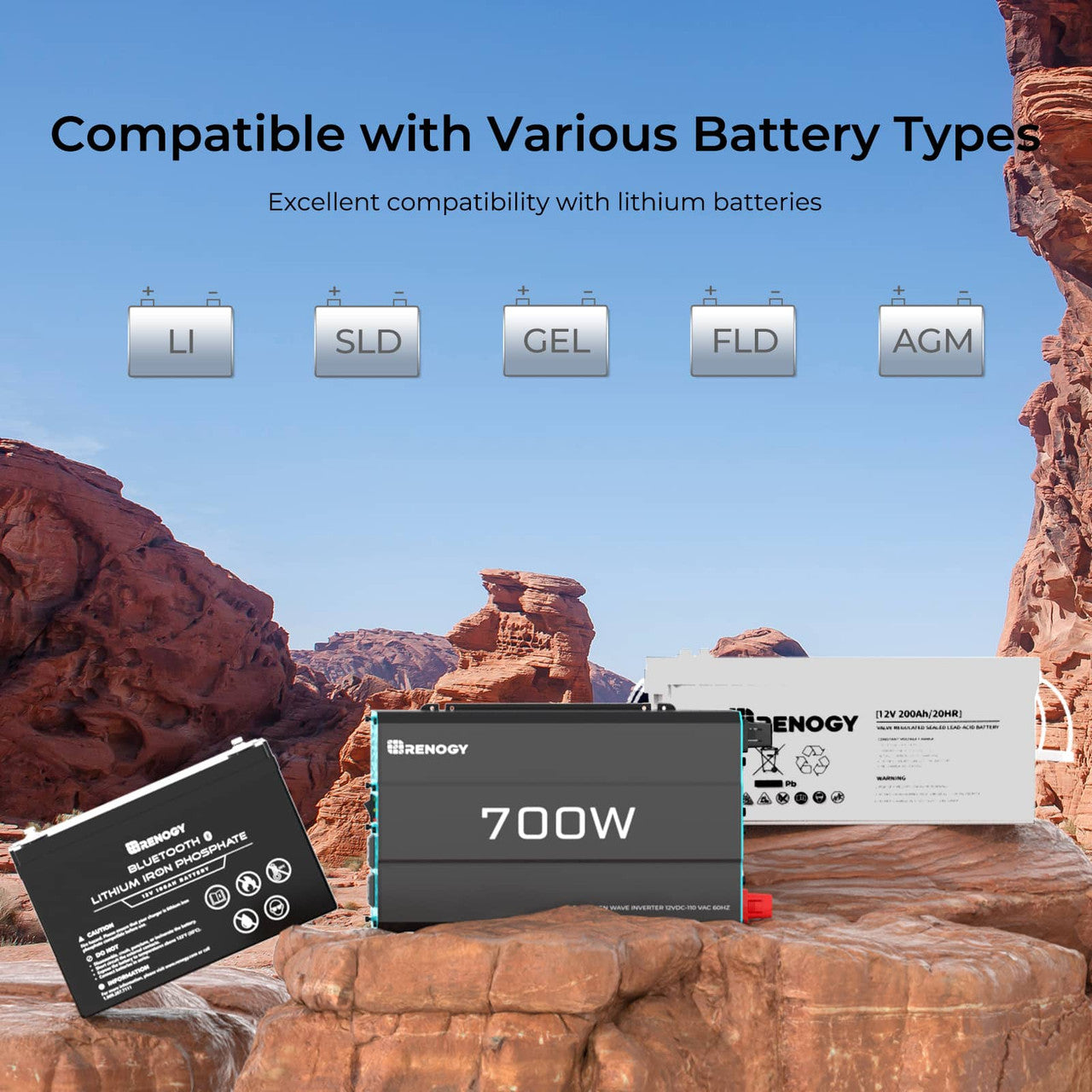

6. Can this inverter work with Lithium batteries?

Yes, as long as the lithium battery is rated for 12V applications.

7. Can I use the Bluetooth Module to monitor this inverter charger from my phone? Which Bluetooth Module should I buy?

We apologize that there is No Bluetooth Module compatible with this inverter.
